Provisional plate augmentation of a GA II-IIIA open tibial nail


Score and Comment on this Case

Select a Score out of 10, and add a comment in the field below

Respectfully consider international variabilty in surgical technique and implants when commenting.
Protected by reCAPTCHA - Privacy and Terms


Clinical Details

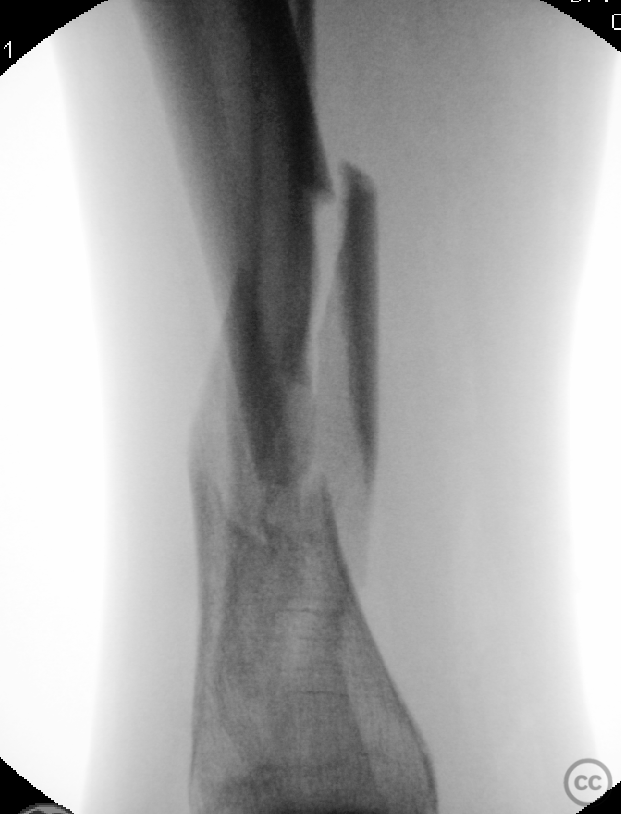

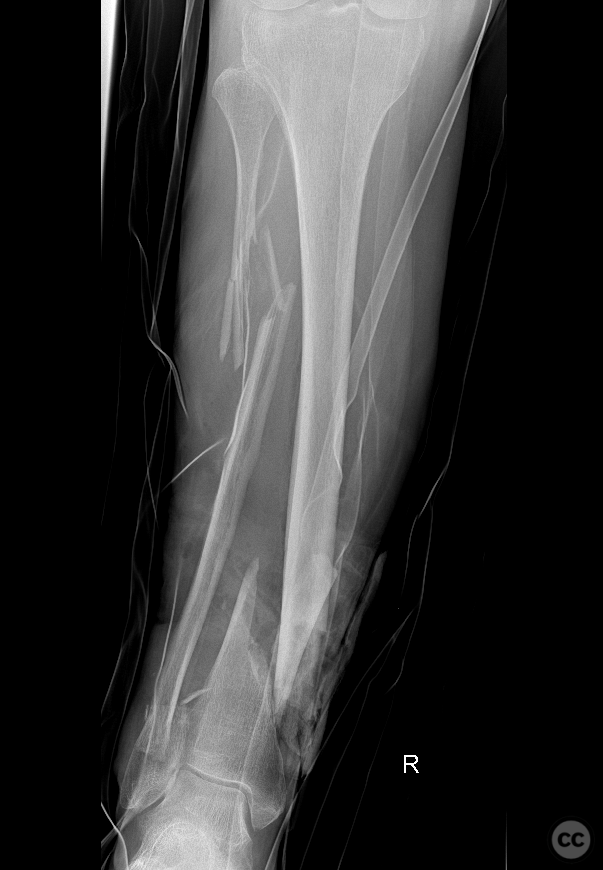

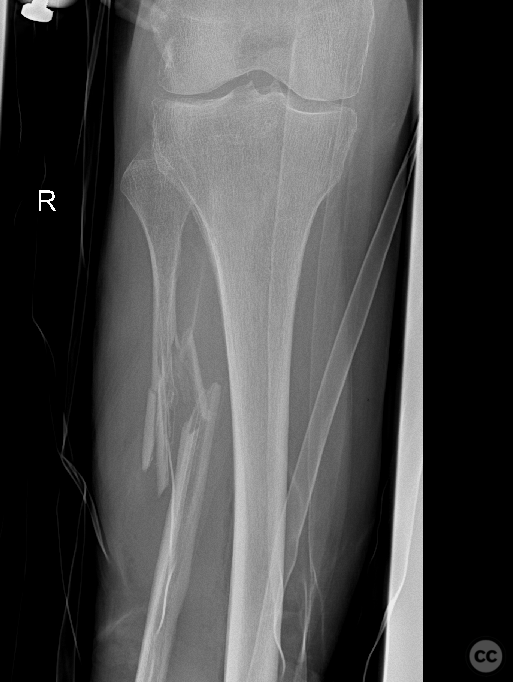

Clinical and radiological findings:  Low energy type II (IIIA) open tibial shaft fracture with segmental fibula fracture in an elderly female.

Preoperative Plan

Planning remarks:

Surgical Discussion

Operative remarks:

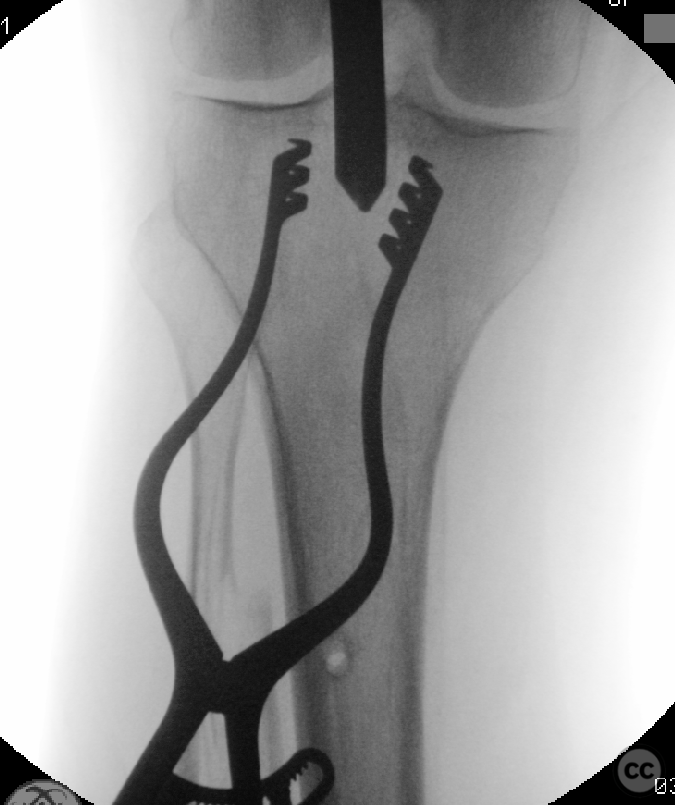

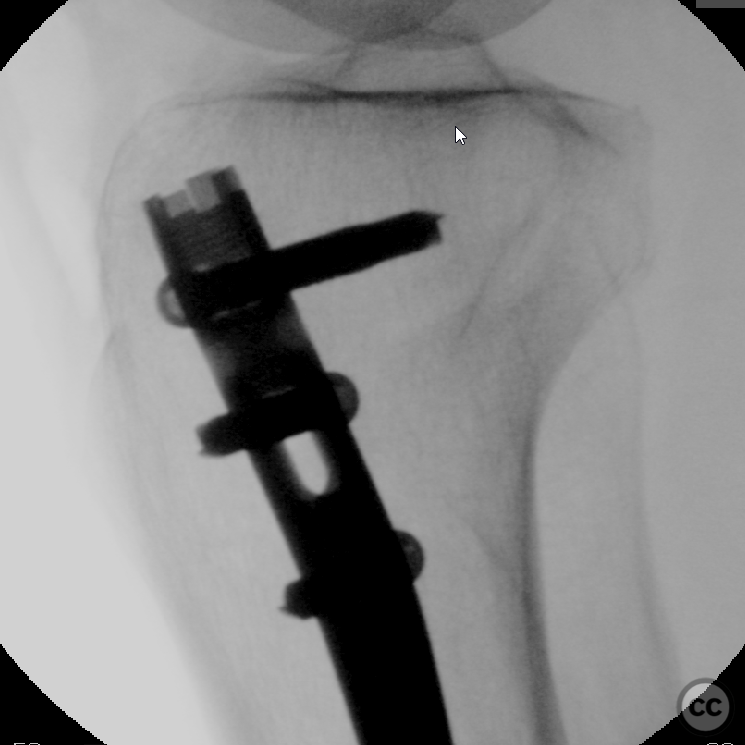

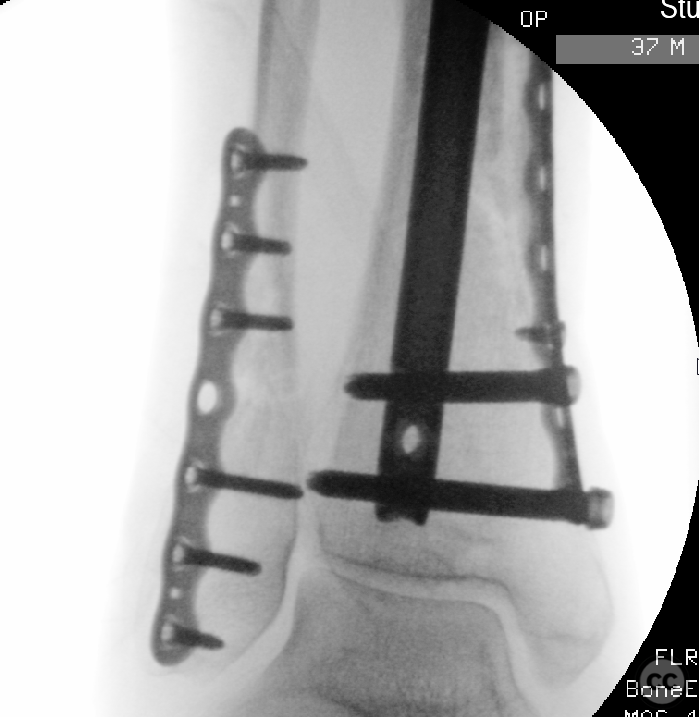

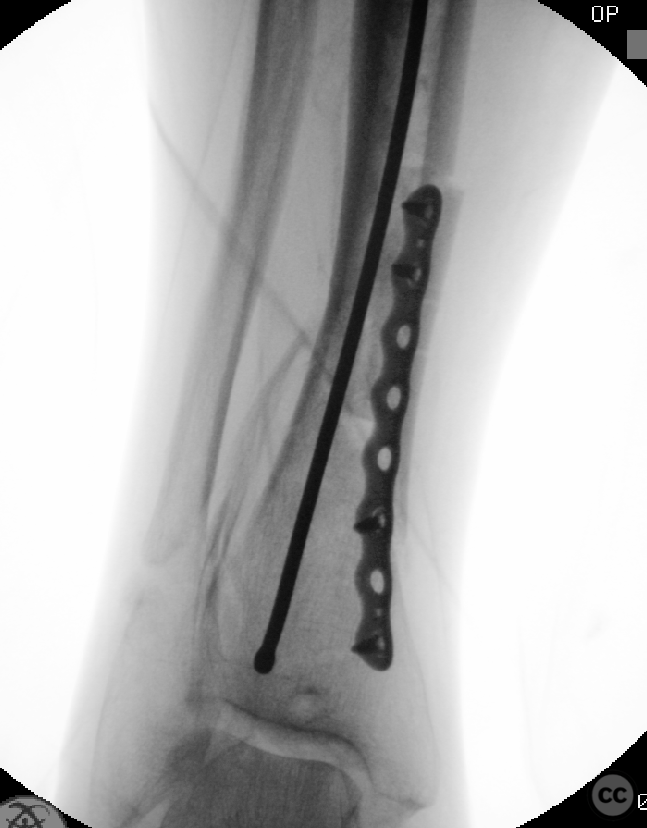

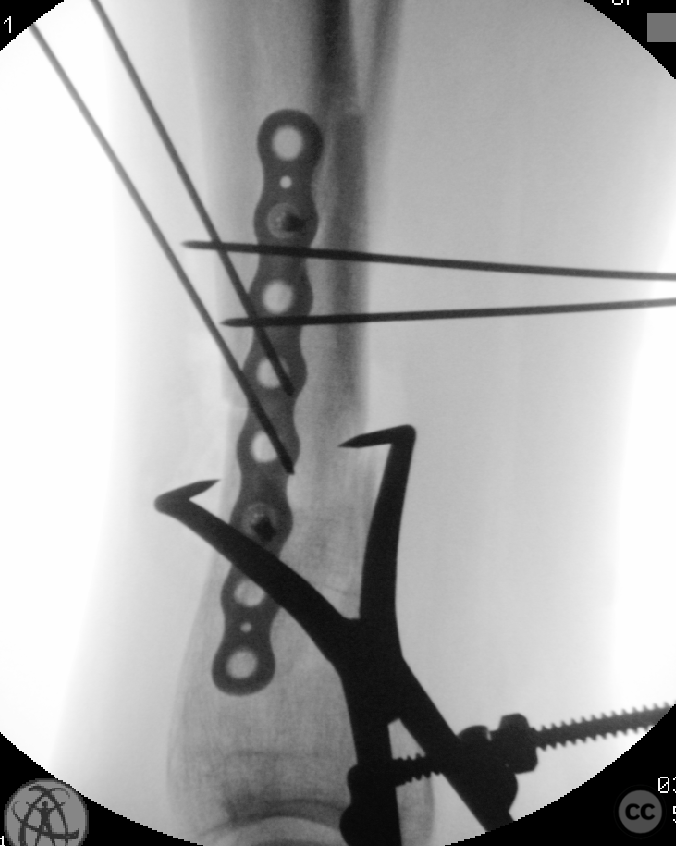

Following initia debridement, VAC cover and Ex-Fix stabilisation, definitive nail osteosynthesis with supplementary monocortical provisional plating was done on day 7 with secondary wound closure of relative good soft tissue envelope. The monocortical locking plate was used to achieve and stabilise provisional reduction and fixation allowing accurate nail insertion and fixation. The plate was left in to support reduction of intermediate fragments although its biomenchanic stability isnt significant. Interestingly, by week 8 the entire construct has collapsed axially (telescoped) under full weight bearing. Alignment of the primary fracture is retained with perforation of the nail and distal interlock through the plafond and into the talus.

Search for Related Literature

Powered by OrthoSearch - The British Editorial Society of Bone & Joint Surgery


#

Dr Ed Oates

  • Germany , Schleswig Holstein
  • Area of Specialty - General Trauma
  • Position - Specialist Consultant
#
