Trimalleolar Ankle Fracture with Open Physes in a 14yo


Score and Comment on this Case

Select a Score out of 10, and add a comment in the field below

Respectfully consider international variabilty in surgical technique and implants when commenting.
Protected by reCAPTCHA - Privacy and Terms


Clinical Details

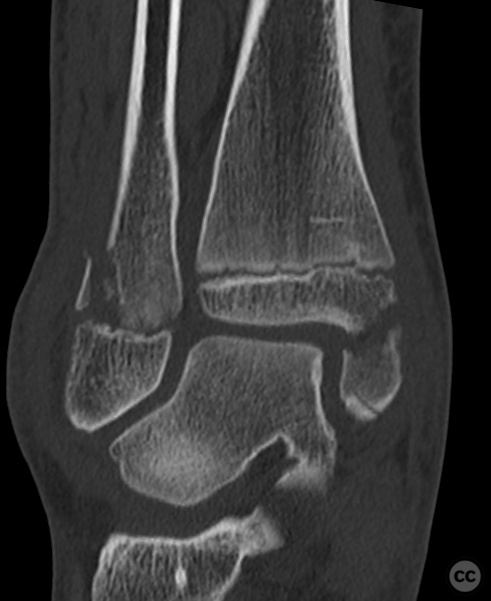

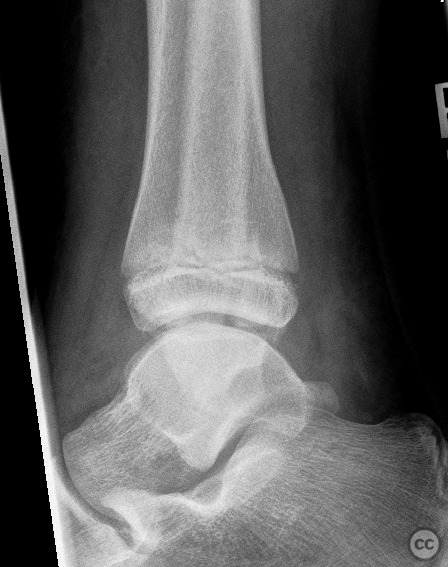

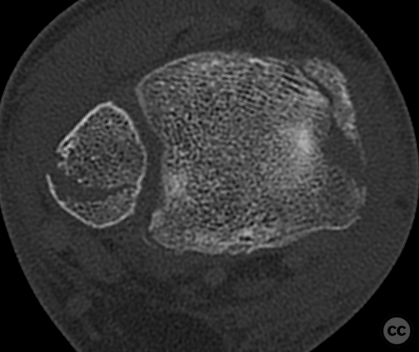

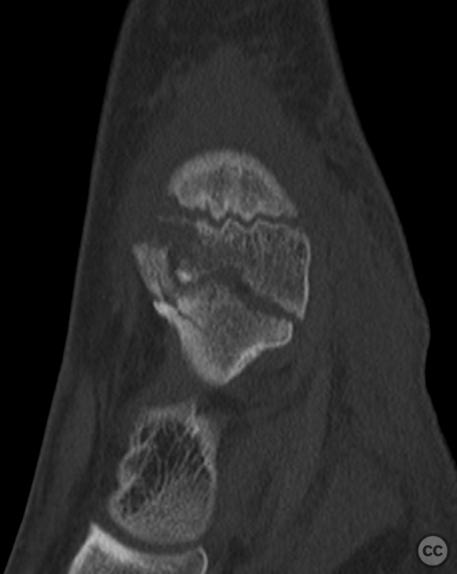

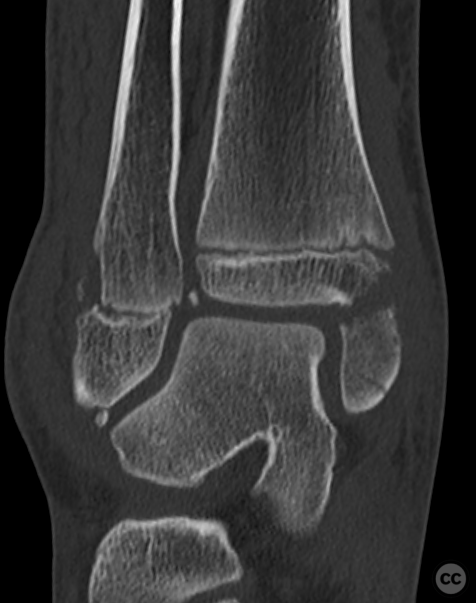

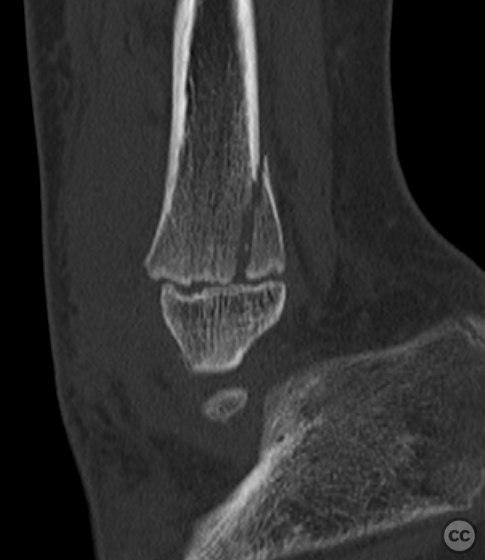

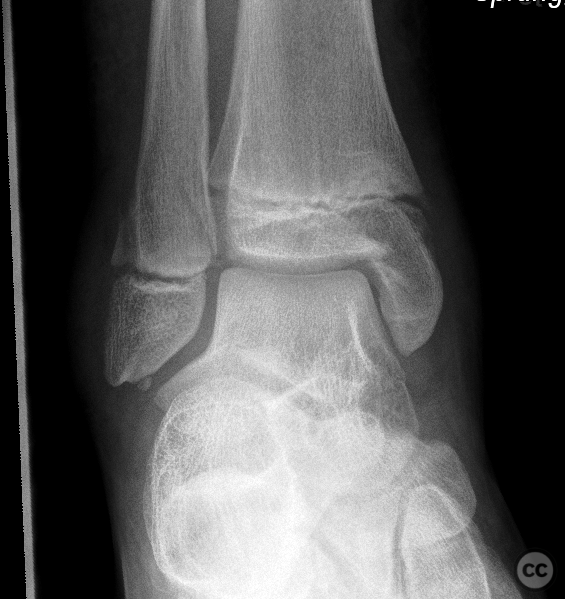

Clinical and radiological findings:  A 14-year-old male presented with a trimalleolar ankle fracture following a schoolyard injury. The injury involved a Salter-Harris II fracture of the fibula, a posterior talofibular ligament (PTFL) avulsion, and a Salter-Harris III/extraphyseal fracture of the medial malleolus. Initial management included closed reduction followed by computed tomography (CT) scanning for detailed preoperative planning.

Preoperative Plan

Planning remarks:  The preoperative plan aimed for physeal-sparing open reduction and internal fixation (ORIF), although the medial side posed challenges due to the course of the epiphyseal fracture and its proximity to the physis. Crossing the physis with a screw on the medial side was anticipated.

Surgical Discussion

Patient positioning:  The patient was positioned supine for the procedure.

Anatomical surgical approach:  Surgical access was achieved through direct medial and lateral approaches. The medial approach involved a curvilinear incision centered over the medial malleolus, carefully preserving the saphenous nerve and vein. The lateral approach entailed a straight incision over the lateral malleolus, with care taken to protect the superficial peroneal nerve.

Operative remarks:

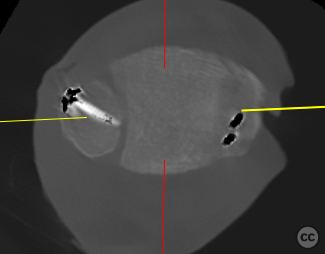

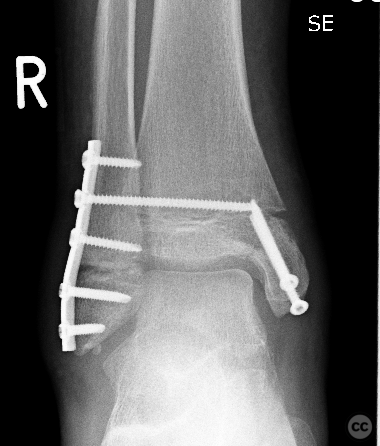

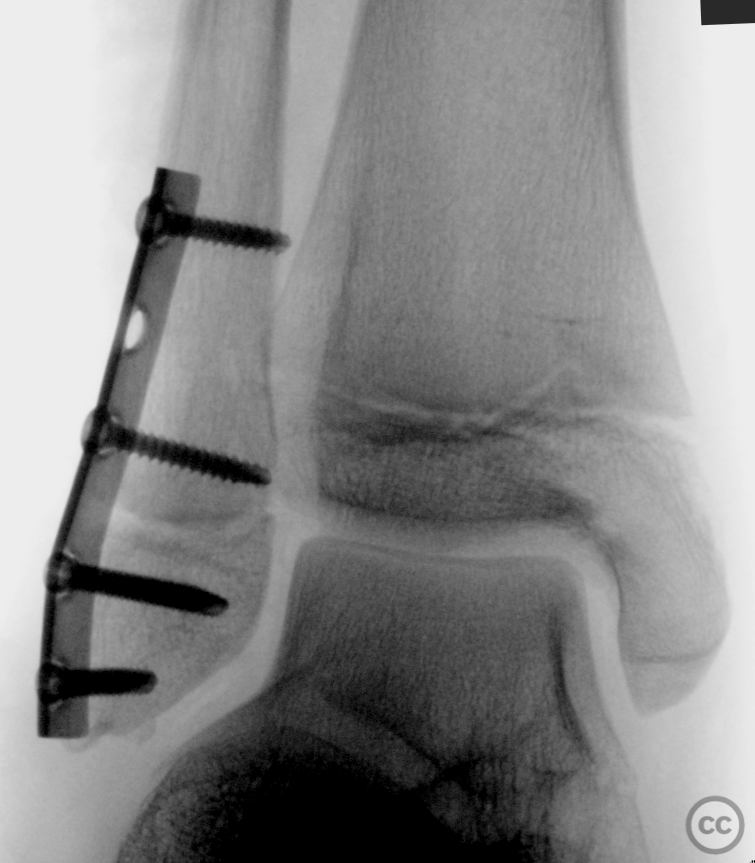

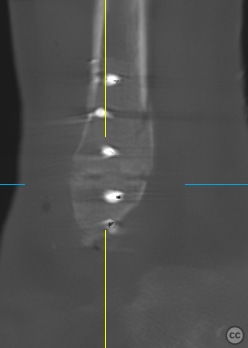

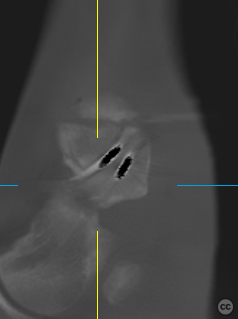

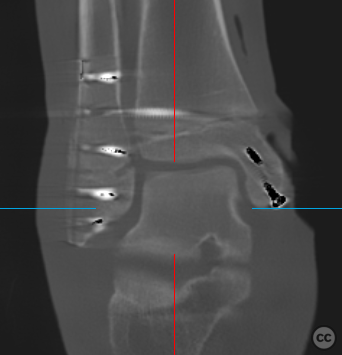

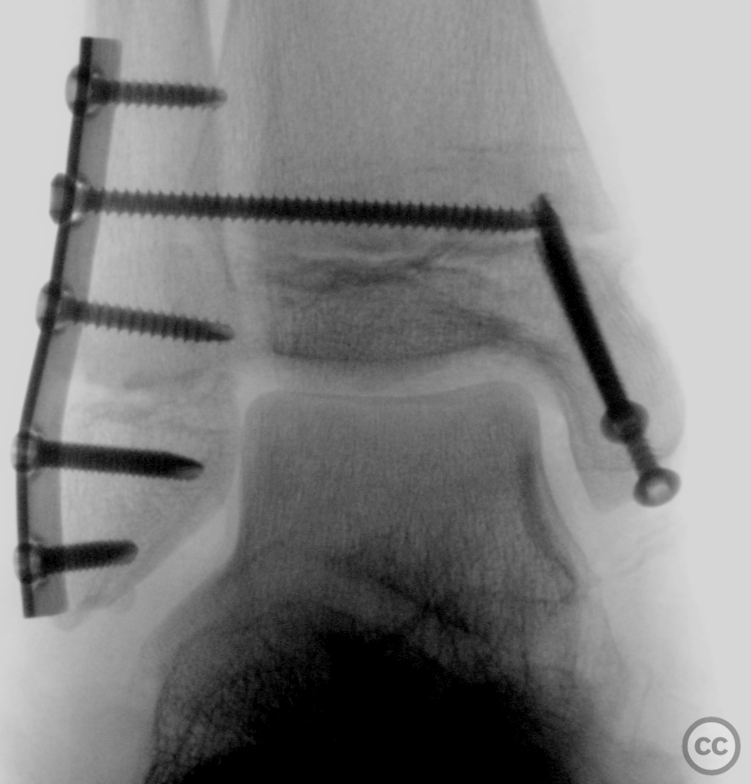

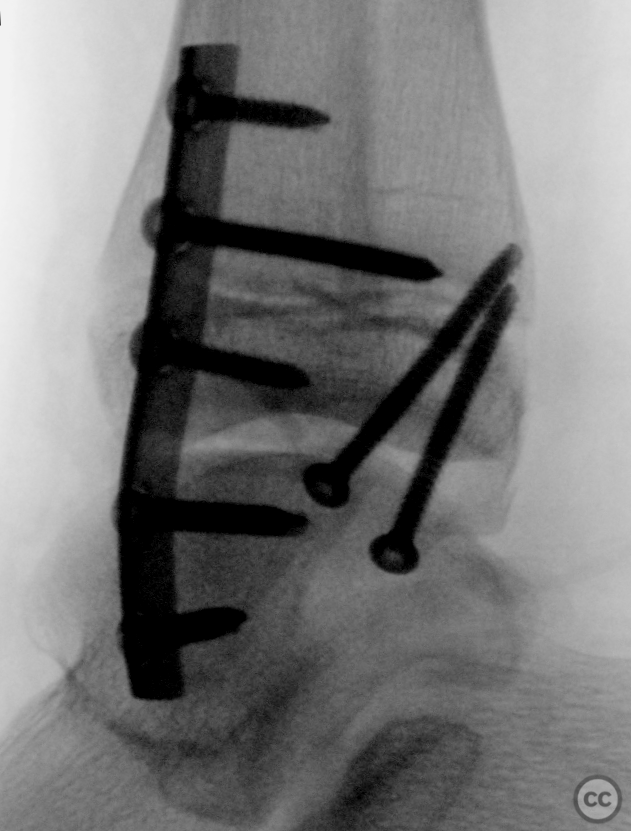

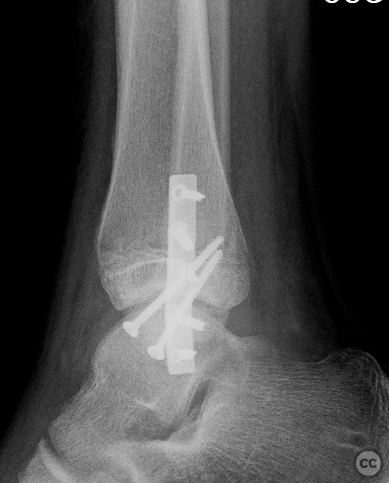

Intraoperatively, the PTFL bony injury was noted alongside an anterior talofibular ligament (ATFL) tear, necessitating syndesmosis screw fixation proximal to the physis under fluoroscopic guidance. A 5-hole lateral plate was used to reduce and stabilize the Salter-Harris II fibular fracture with two distal locking screws. Medially, two screws were placed perpendicular to the fracture line; however, physeal sparing was not possible, resulting in two screws crossing the physis in the posteromedial aspect.

Postoperative protocol:   Postoperatively, the patient was placed in an ankle orthosis for six weeks.

Follow up:   Not specified.

Orthopaedic implants used:   Not specified.
